Face Mill

Developed for high performance and precision, Technical Cutting Tools milling cutters enable fast and efficient machining on various surfaces. Thanks to their durable construction, Technical Cutting Tools products offer long-lasting and reliable use.

Find the product you're looking for easily!
Search by product code or product features:

Face Mill Back to Products

Face Mill

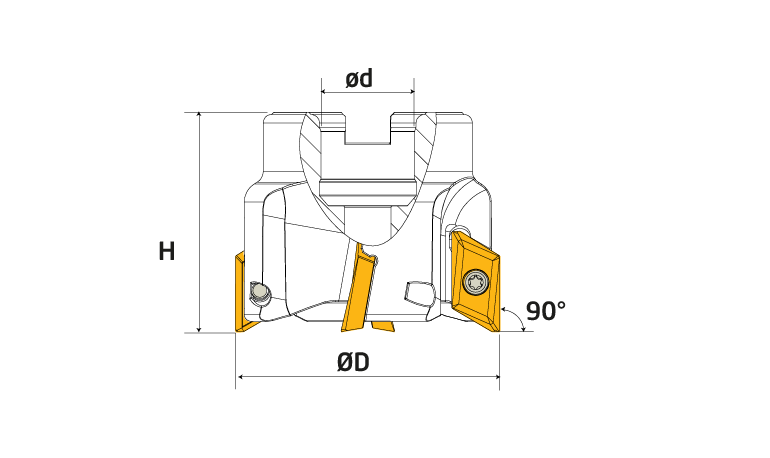

90° XEKT 1904

90° XEKT 1904
90° XEKT 1904

Products and Technical Specifications

Sipariş Kodu
Order Code
Best.-Nr.		Ürün Kodu-Product Code-Produkt-CodeÖlçüler(mm)-Dimensions(mm)
Abmessungen(mm)		Kullanılan Uç
Insert
WSP		Sıkma Civatası
Clamp Screw
TorxSchraube		Anahtar
Torx Key
Torx-Schlüssel
DdZHKg
T365●D040 d16 Z03 XEKT 19 IK40163450,192XEKT 19 KRLYTC073T15
T366●D050 d22 Z04 XEKT 19 IK50224500,318
T367●D063 d22 Z04 XEKT 19 IK63224500,562
T368●D080 d27 Z05 XEKT 19 IK80275500,791
T369●D100 d32 Z06 XEKT 19 IK100326631,952
T370●D125 d40 Z06 XEKT 19 IK125407632,951

KRLY ucuna uygundur./ Compatible with KRLY insert./ Kompatible für KRLY WP

Search for products on the website

Product photos and technical drawings may show minor variations depending on the production process. All our products are manufactured according to Technical Cutting Tools quality standards.
